Single Dice Mold Housing System (multiple size options)
The Ultimate 3D Printed Dice Mold Housing System
Make Professional Silicone Molds with Ease!
Tired of "Cookie Cutter" Rigs? Step Up Your Mold-Making Game.
Introducing the Bathyal Labs Mold Housing System—the essential tool for serious dice makers looking to create professional-quality, two-part silicone molds without the hassle. Designed and 3D-printed by dice makers, for dice makers.
Key Features
-
Unique Design: Exclusively designed and 3D modelled by Bathyal Labs.
-
Inbuilt Alignment Keys: Integrated keys ensure mold halves align perfectly every time, reducing flashing and miscasts. Includes a dedicated Cone Key.
-
Easy Clip System: Quick-secure clips for fast assembly and effortless removal.
-
Shape Stability: Secure the lid using rubber bands for extra stability in the pressure pot.
-
Standard Capacity: Comfortably fits a standard sharp-edged die with generous silicone space.
-
Durable: Printed in high-quality Matte Black PLA.
Specifications & Dimensions Small
-
Material: Matte Black PLA
-
Capacity: 1 Standard Die
-
Internal Diameter (Widest Section): 5 cm
-
Total Exterior Size: 10 cm (L) x 6 cm (W) x 6 cm (H)
Note: Capacity varies based on master size. We also offer a Large/Extra Large systems for multiple dice, check our store for options.
Specifications & Dimensions Medium
-
Material: Matte Black PLA
-
Capacity: 1 Standard Chonk Die
-
Internal Diameter (Widest Section): 6.1 cm
-
Total Exterior Size: 10.9 cm (L) x 7.3 cm (W) x 7.3 cm (H)
We use this for out 27mm Chonk D20s
Specifications & Dimensions Large
-
Material: Matte Black PLA
-
Capacity: 1 Standard Chonk Die
-
Internal Diameter (Widest Section): 7.1 cm
-
Total Exterior Size: 12.7 cm (L) x 8.5 cm (W) x 8.5 cm (H)

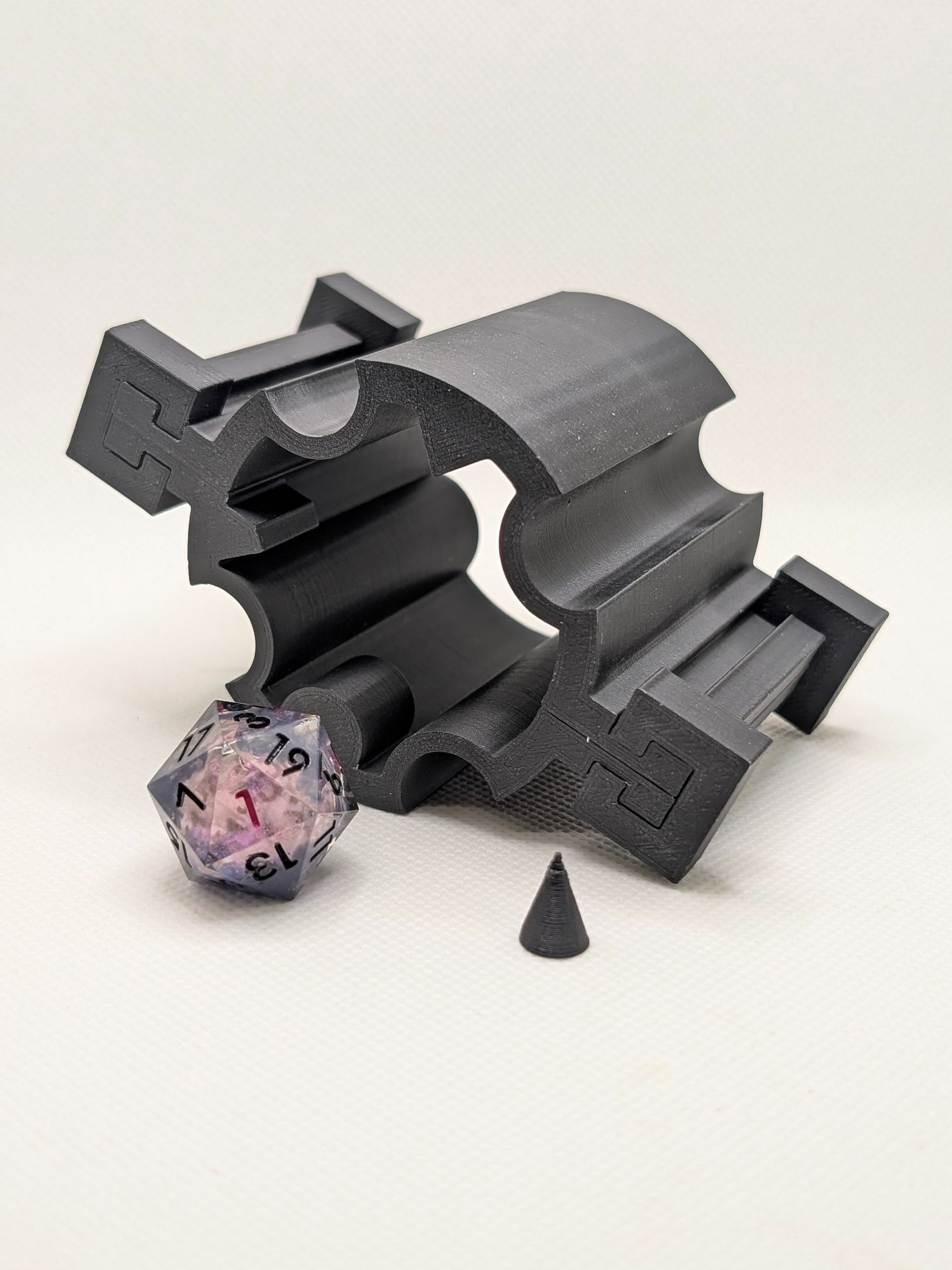

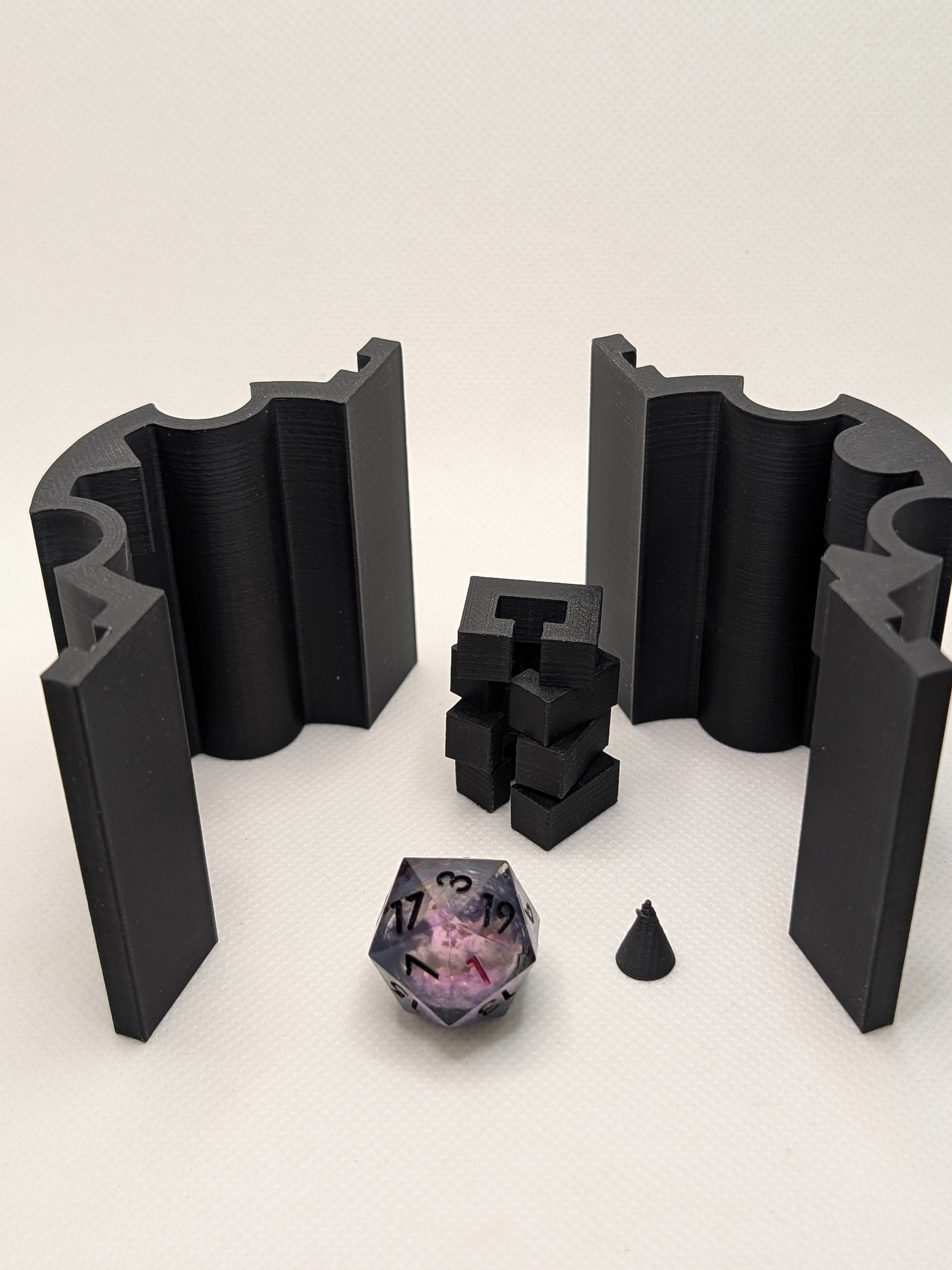

Example Photos are of the Small
Our Recommended Mold-Making Process
-
Assembly: Snap the housing system together using the clips.
-
Mount: Use adhesive (transfer tape) to secure your master and housing to a flat surface. Housing must be Key Side Down; place Cone Key in center.
-
Seal: Hot glue exterior edges for a leak-proof seal.
-
First Pour: Pour silicone and cure (ideally in a pressure pot).
-
Prep: Remove first half and cone key. Trim silicone flash for a flat fit.
-
Release Agent: Apply Talcum powder or Vaseline to the silicone. Keep it off the master die.
-
Second Pour: Place silicone back into housing (Key Side Up). Adjust height, re-seal edges, and pour second batch.
-
Finish: Cure, demold, and enjoy!
⚠️ Product Safety & Liability Disclaimer
By purchasing this product, the buyer agrees to the following terms:
-
Adult Collectible Warning: Products sold by Bathyal Labs are designed for use by adults (Ages 14+) for tabletop gaming. They are NOT toys.
-
Choking Hazard: This item contains small parts. It is strictly not suitable for children under 3 years of age. Keep out of reach of all children and pets.
-
Modifications: Bathyal Labs is not responsible for damage, injury, or product failure caused by customer modifications, including but not limited to drilling, sanding, heating, or re-polishing.
-
Limitation of Liability: To the extent permitted by law, Bathyal Labs is not responsible for any injury or damage arising from the misuse, ingestion, or improper storage of these products.
Shipping & Shop Policies
-
Note: Dice in photos are for reference only and NOT included.
-
Shipping: All orders include tracking. US Tariffs and UK/EU VAT are prepaid by Bathyal Labs.
-
Returns: Due to the 3D-printed nature of these tools, we do not accept returns unless there is a genuine functional defect.
